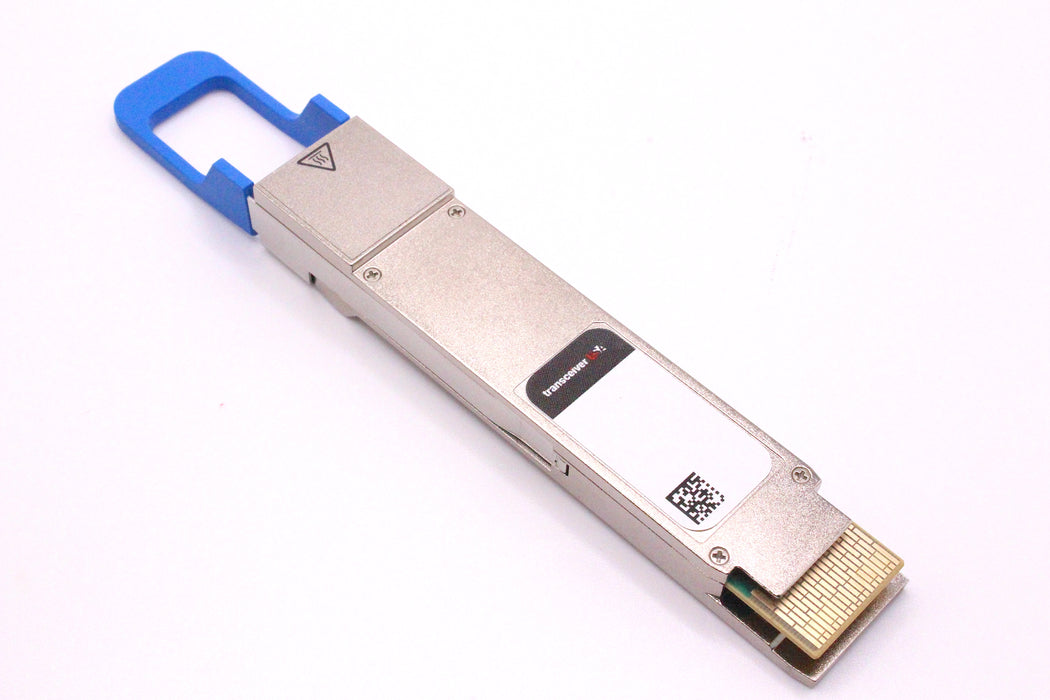

Transceiver USA 800G OSFP112 DR4 Optical Network Module

Applications

·       Application case 1, 8x100G DR, 8 of 100G per channel breakout connections.

·       Application case 2, 2x400G DR4, 2 of 400G per port breakout connections.

·       Application case 3, 2x200G DR4, 2 of 200G per port breakout connections.

·       Application case 4, 1x800G DR8, 1 of 800G per port point to point connection.

·       Application case 5, 2x100G PSM4, 2 of 100G per port breakout connections.

Specifications

·       Adaptive Tx input equalization

·       Programmable Rx output amplitude

·       Programmable Rx output pre-cursor

·       Programmable Rx output post-cursor

·       Supply voltage monitoring (DDM_Voltage)

·       Transceiver case temperature monitoring (DDM_Temperature)

·       Tx transmit optical power monitoring for each lane (DDM_TxPower)

·       Tx bias current monitoring for each lane (DDM_TxBias)

·       Rx receive optical power monitoring for each lane (DDM_RxPower)

·       Warning and alarm indication for each DDM function

·       Tx & Rx LOL and LOS indication

·       Tx fault indication

·       Host and line side loopback capabilities

·       Host and line side PRBS generator and checker capabilities

·       CDB firmware upgrade capability

·       Versatile diagnostics monitoring (VDM) capability (optional, additional power consumption increase)

·       Other functions defined in CMIS
