Finisar SFP+ and SFP28 Optical Transceiver Evaluation Board
| Manufacturer | II-VI Finisar |
| Manufacturer Part Number | FDB-1032-SFP+ |
| Product Category | Fiber Optic Transceiver Evaluation Board |
| Lifecycle | Active |
| Stock | Ships Immediately |
| Supporting Documents | Datasheet |
| Environmental Classification | RoHS Compliant |
Specifications

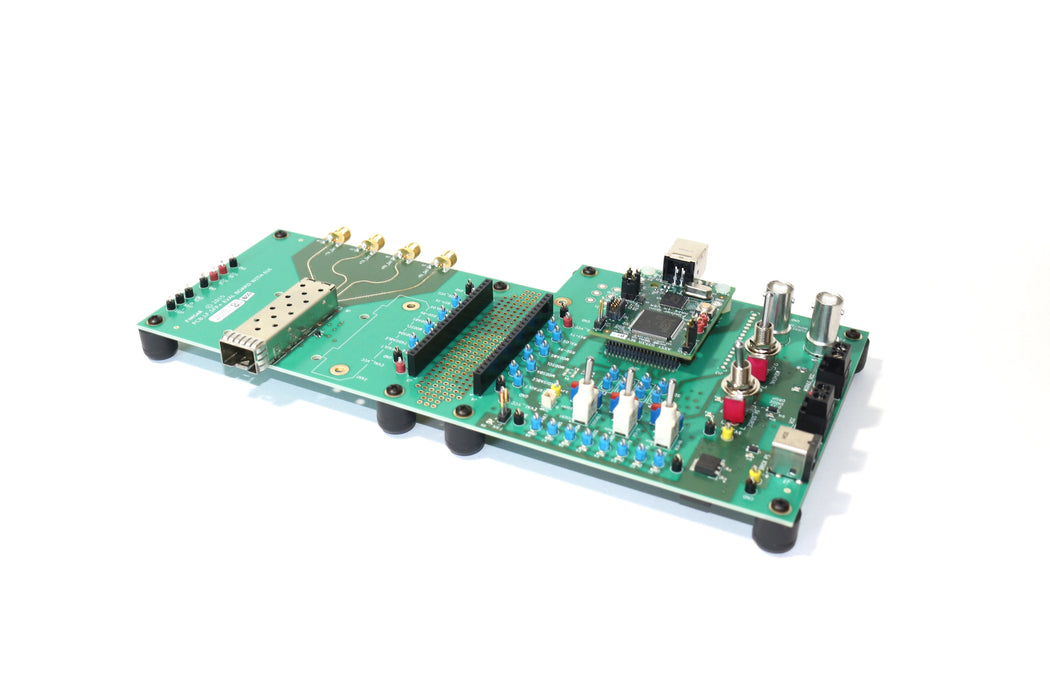

The board consists of a single SFP28 edge connector and SFP28 cage assembly, four 50-ohm SMA female coaxial connectors (J15-J18) for the high-speed differential transmitter input and receiver output signals, and test points for monitoring the following pins:
- Module RX_LOS
- Module RX Rate Select 0
- Module TX Rate Select 1
- Module Absent
- TWI (Two Wire Interface) SCL and SDA TX Disable
- TX Fault
- Eval Board Ground and Vcc
- Module Vcc RX and TX
- Module Ground
- Case Ground
- The Evaluation Board has LED’s for the: RX_LOS
- RX Rate Select 0
- TX Rate Select 1
- Module Absent
- TWI – SDA and SCL (Low) TX Disable
- TX Fault
- Eval Board Power 5V
- Eval Board Power 3.3V
Automated Control Mode Operation
For GUI controlled operation set slider switches S4, S5, and S6 to the “PC” position, away from the SFP cage. Launch the GUI called Transceiver Workbench SFP MSA. This GUI will give you access to the DDM (Digital Diagnostic Monitors) as well as let you see and control masks for the
Finisar’s FDB-1032-SFP+ Evaluation Board is designed for testing and evaluating all SFP, SFP+ and SFP28 transceivers as well as SFPwire® Active Optical Cables. This is not a module compliance board, but it is compatible with MSA compliant SFP, SFP+ and SFP28 transceivers. This evaluation board has 4 different power options.
