Coherent Finisar Tunable XFP and SFP+ Optical Transceiver Evaluation Board
| Manufacturer | II-VI Finisar |
| Manufacturer Part Number | FDB-1048 |
| Product Category | Fiber Optic Transceiver Evaluation Board |
| Lifecycle | Active |
| Stock | Ships Immediately |
| Supporting Documents | Datasheet |
| Environmental Classification | RoHS Compliant |
Specifications
The FDB-1048 is a USB-connected interface unit for T-XFP and T-SFP+ transceivers. Access to the I2C interface of the transceiver, as well as interfacing some other hardware signals such as MOD_ ABS, RX_LOS and TX_DISABLE is possible via a PC connection. This connection is made through USB 2.0, via Windows built-in HID driver. A proprietary protocol controls and communicates with the processor in the FDB-1048 from the different PC applications.
It has a convenient small and robust design, which together with the simple USB-
only powered solution, makes it the perfect tool also for using in field applications. Applications include Part number and Serial number (PID) readouts and tuning a Tunable XFP or SFP+ transceiver.

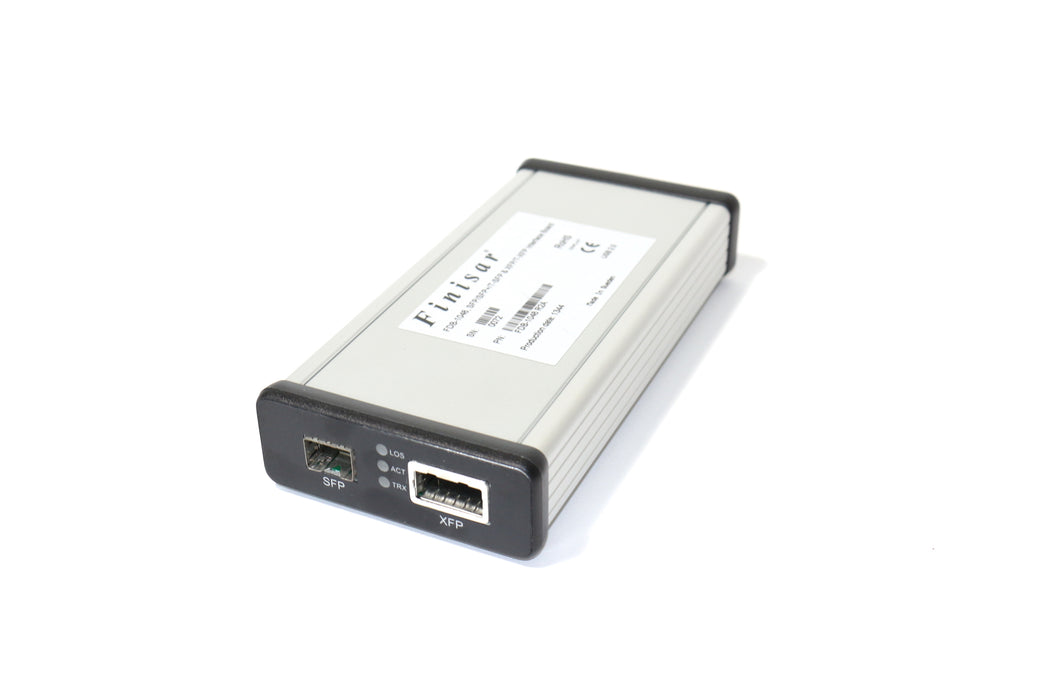

The three LEDs on the front panel represent (bottom-top): “Module Present”, “Activity” and “RX LOS”.
Key Features
- Compact and portable design for field use with any laptop
- No external power required (powered off laptop USB port)
- User Friendly GUI allows for tuning by Wavelength, Frequency, or Channel Number
- Able to wavelength tune an SFP+ or XFP module with the same box
Applications
- Used for setting the Wavelength or Channel on Finisar’s Tunable XFP and Tunable SFP+ products
