Finisar QSFP28 100G Optical Transceiver Evaluation Board
| Manufacturer | Finisar |
| Manufacturer Part Number | FDB-1051 |
| Product Category | Fiber Optic Transceiver Evaluation Board |
| Lifecycle | Active |
| Stock | Ships Immediately |
| Supporting Documents | Datasheet |
| Environmental Classification | RoHS Compliant |
Specifications

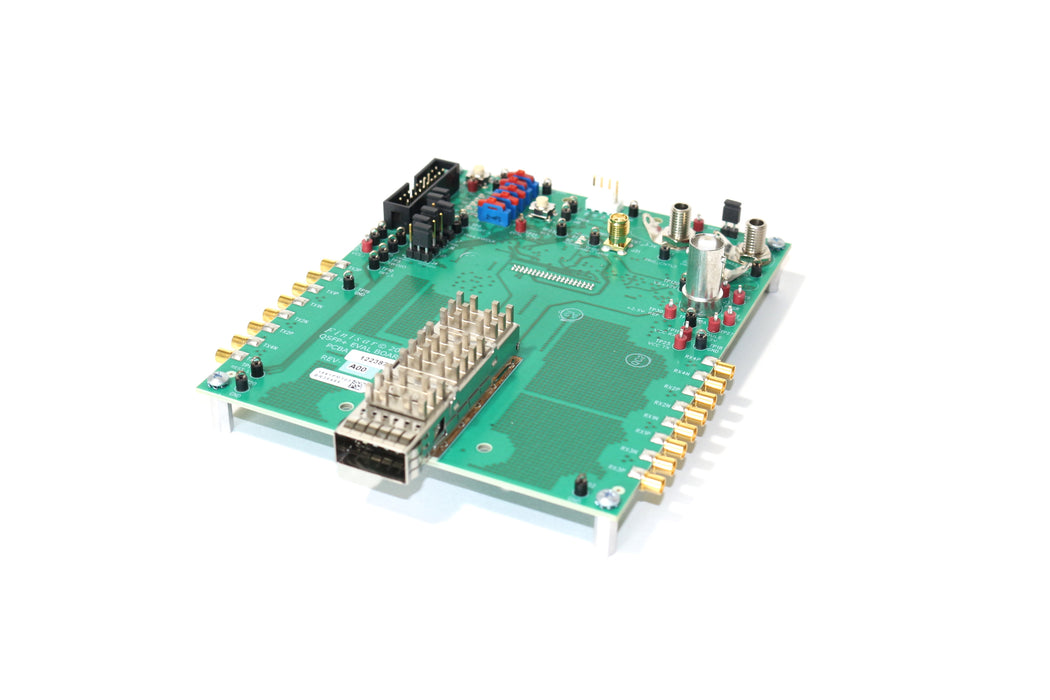

The board consists of a single QSFP+ edge connector and QSFP+ cage assembly, sixteen 50-ohm SMP coaxial connectors (J1-J16) for the high-speed differential transmitter input and receiver output signals, and test points with LED’s for monitoring the following QSFP+ and Evaluation Board pins:
- Module Select
- Module Reset
- SM Bus
- USB Bus
- Module Low Power Mode Module Interrupt
- Module Present Module Status
The I2C pins (SDA, SCL and GND) have tap points available on top of the Evaluation Board while there are three taps on the bottom that are for loading the FW to the microprocessor (for internal use only).The Evaluation Board has LED’s for the USB, Microcontroller Power, Module Power and External Power as well. It is compatible with all MSA compliant QSFP+ transceivers.
The FDB-1051 QSFP+ Evaluation Board is powered by a supply voltage of 6V (positive center) at 2A from the 100V-240VAC, 50- 60Hz adaptor.
