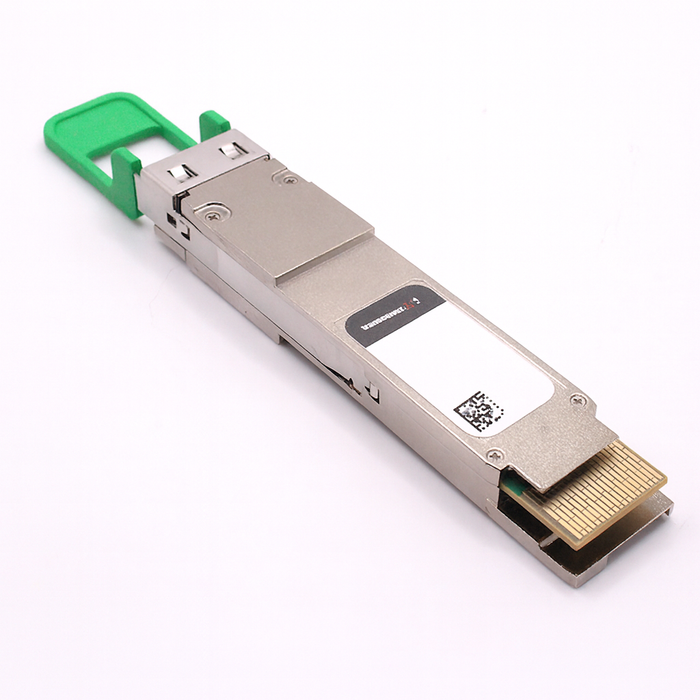

Transceiver USA 400G OSFP DR4+ Optical Network Module
$499.00
Transceiver USA's TUSA4OSFPDR4P optical modules are used in datacenter and enterprise networks. They are designed for use in 400Gigabit Ethernet links, with a 2km reach on single mode fiber with FEC. They are MSA and RoHS compliant.
| Manufacturer | Transceiver USA |
| Manufacturer Part Number | TUSA4OSFPDR4P |
| Product Category | Fiber Optic Transceiver Module |
| MOQ | 2 |
| Stock | In Stock |
| Supporting Documents | Datasheet |
| Environmental Classification | RoHS Compliant |
Applications
- 400G Ethernet
- Infiniband interconnects
- Datacenter Enterprise networking
Specifications
- Cross Vendor Compatibility
- OSFP MSA Compliant
- Parallel 4 Optical Lanes
- IEEE802.3bs Specification compliant
- 100G Single Lambda 100G-FR compliant
- Minimum 8dB Link Budget at Minimum 5dB Channel Loss
- Up to 2km transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70oC
- 8x53.125Gb/s electrical interface (400GAUI-8)
- Data Rate 106.25Gbps (PAM4) per channel
