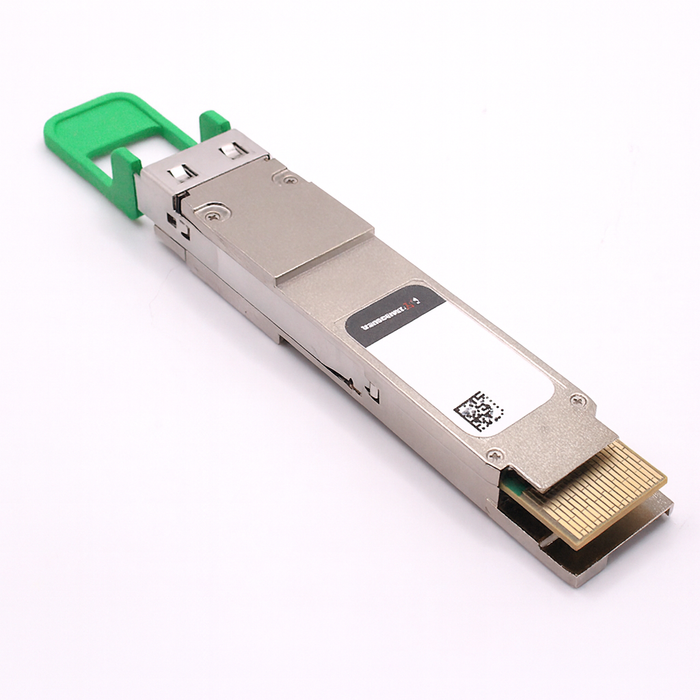

Transceiver USA 400G QSFP-DD LR4 Optical Network Module
Transceiver USA's TUSA400QDDLR4 optical modules are used in datacenter and enterprise networks. They are designed for use in 400Gigabit Ethernet links, with a 10km reach on single mode fiber. They are MSA and RoHS compliant.
| Manufacturer | Transceiver USA |
| Manufacturer Part Number | TUSA400QDDLR4 |
| Product Category | Fiber Optic Transceiver Module |
| MOQ | 2 |
| Stock | In Stock |
| Supporting Documents | Datasheet |
| Environmental Classification | RoHS Compliant |
Applications
· Data Center Interconnect
· 400G Ethernet
· Infiniband interconnects
· Enterprise networking
Specifications
· Cross vendor compatibility
· QSFP-DD MSA compliant
· 4 CWDM lanes MUX/DEMUX design
· 100G Lambda MSA 400G-LR4 Specification compliant
· Up to 10km transmission on single mode fiber (SMF) with FEC
· Operating case temperature: 0 to 70C
· 8x53.125Gb/s electrical interface (400GAUI-8)
· Data Rate 106.25Gbps (PAM4) per channel.
· Maximum power consumption 10.5W
· Duplex LC connector
· RoHS compliant
